Sheet Jointing

A premium quality Grade X Jointing based on Carbon Fibre with a high quality Nitrile Rubber Binder. This material has excellent mechanical properties and a wide range of approvals including TA-Luft, API 607 Fire Safe and BS7531 Grade X

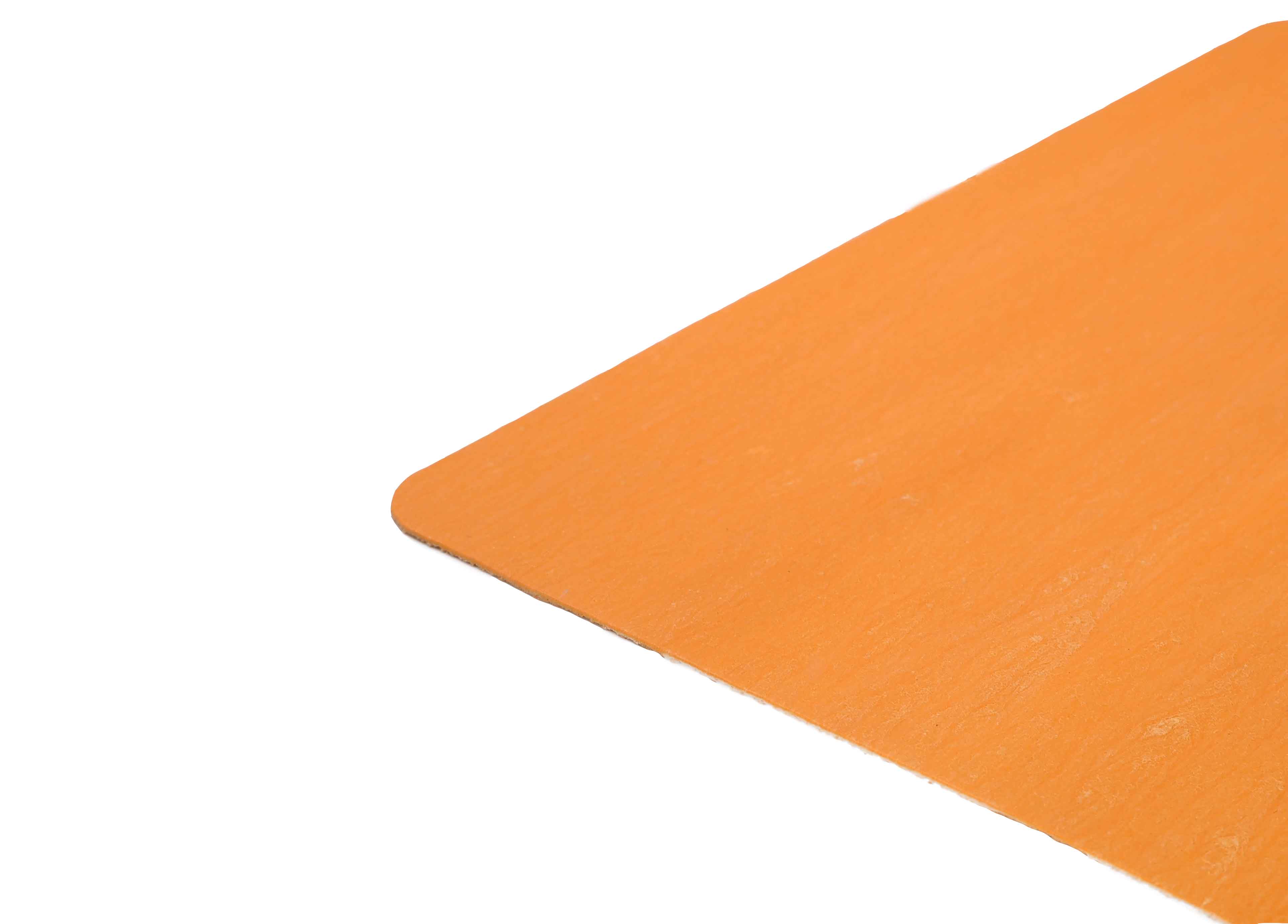

A High Quality Grade Y Compressed Fibre Jointing manufactured from a blend of Heat Resistant Fibres and elastomeric binder. Approved to DIN-DVGW, WRAS and BS7531 Grade Y.

A superior quality Grade X Jointing with excellent mechanical properties and a wide range of approvals including DIN-DVGW, WRAS, BAM & BS7531 Grade X

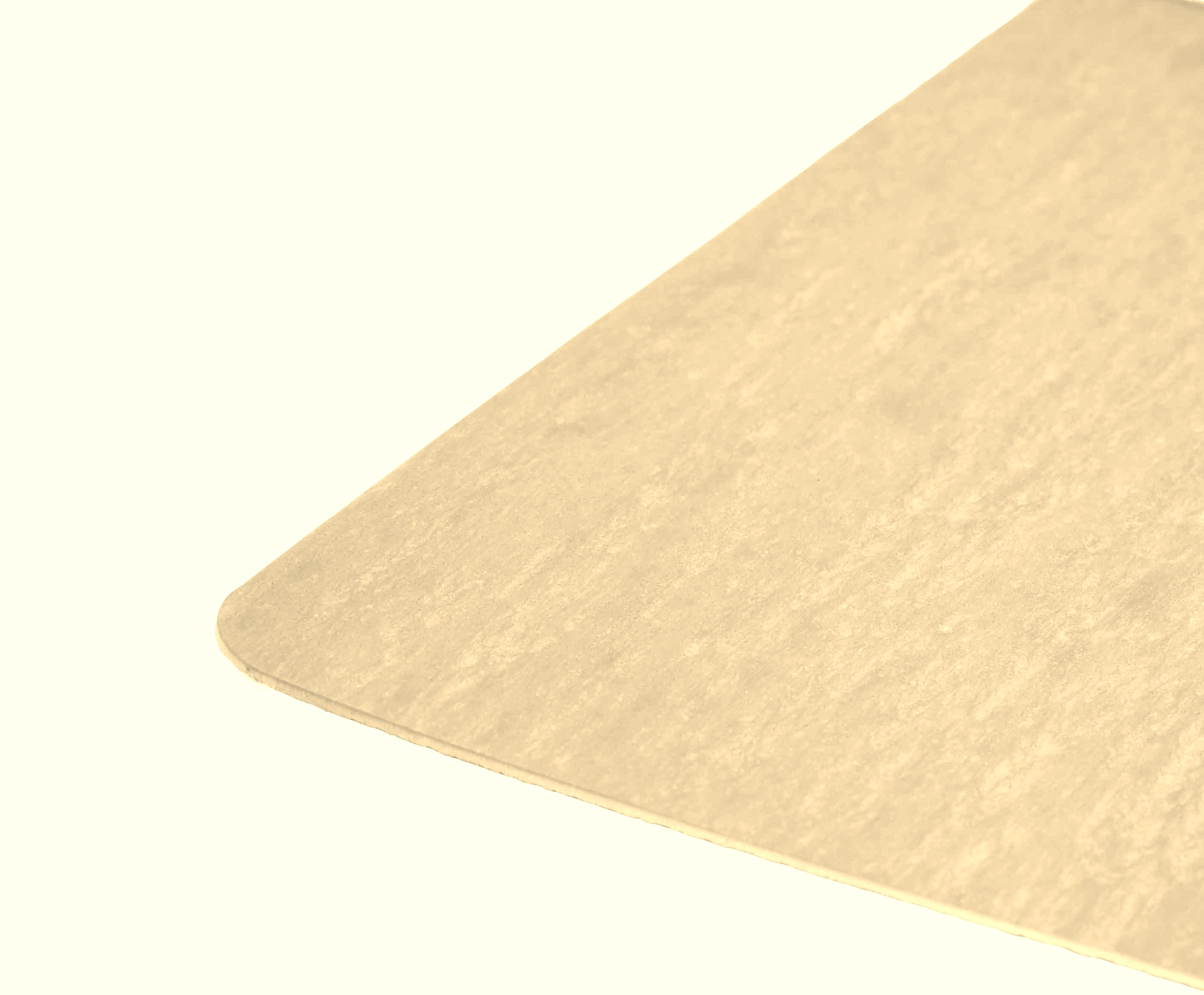

J201 is a universal grade of Silica filled PTFE suitable for many general applications. Suitable for use with strong Acids & Alkalis, solvents, fuels, water, steam and chlorine. The grade has very low gas permeability and excellent creep resitance.

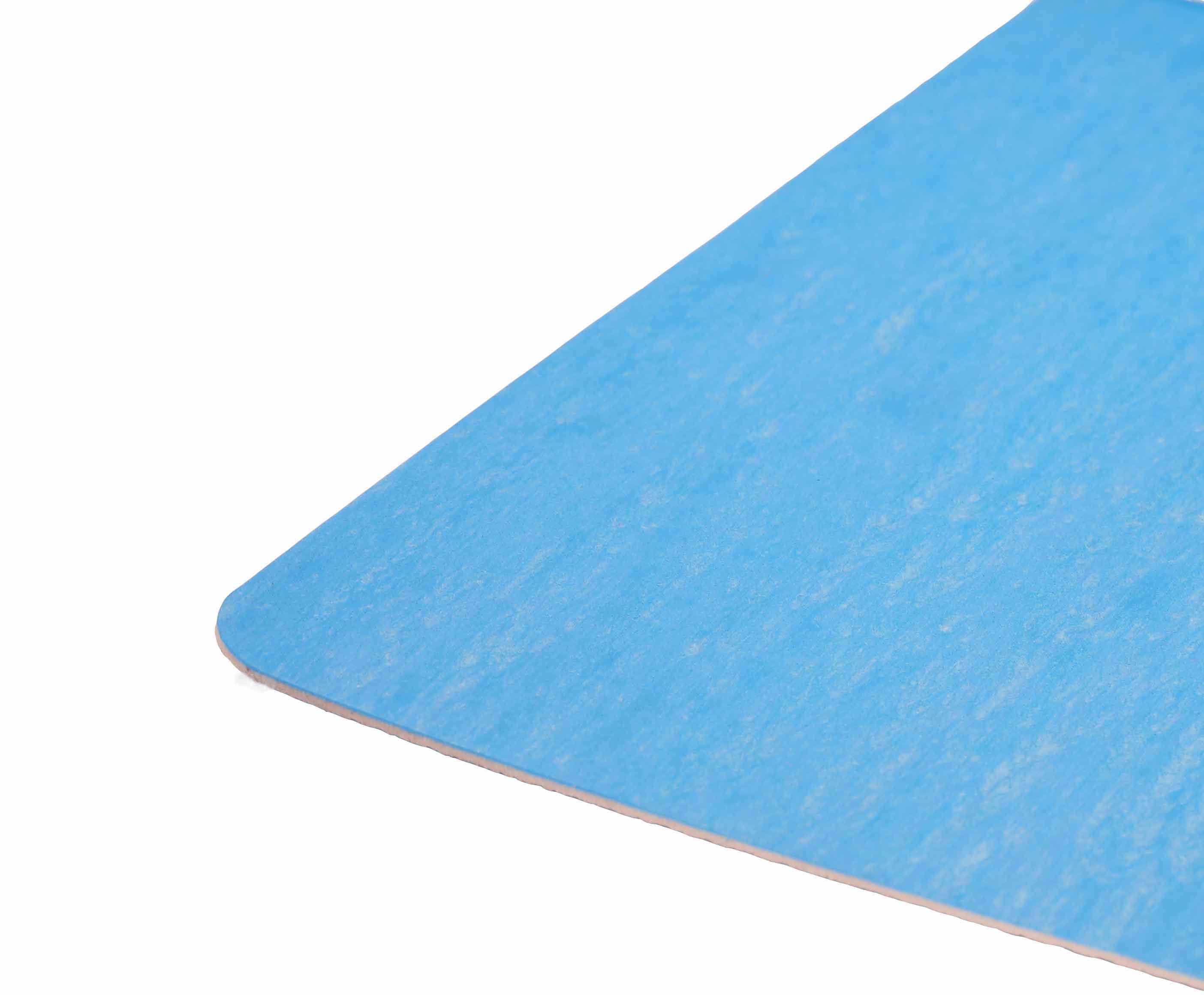

High Performance glass fibre filled PTFE Sheet with biaxal strength suitable for standard and irregular flanges. Designed for low bolt torque applications and irregular flanges. Suitable for use on glass lined vessels, ceramic or plasic flanges where there is uneven surface finish.Suitable for a wide spectrum of chemicals across the whole PH range. J202 has Low Gas Permeability and excellent Creep resistance.

Premium grade EPDM rubber gasketing designed to meet the stringent requirements of the NSF Standard 61 for products used in potable water. Meets or exceeds AWWA C111/A21.11 compound requirements.

This product is manufactured to order and therefore may be subject to minimum production batch quantities.

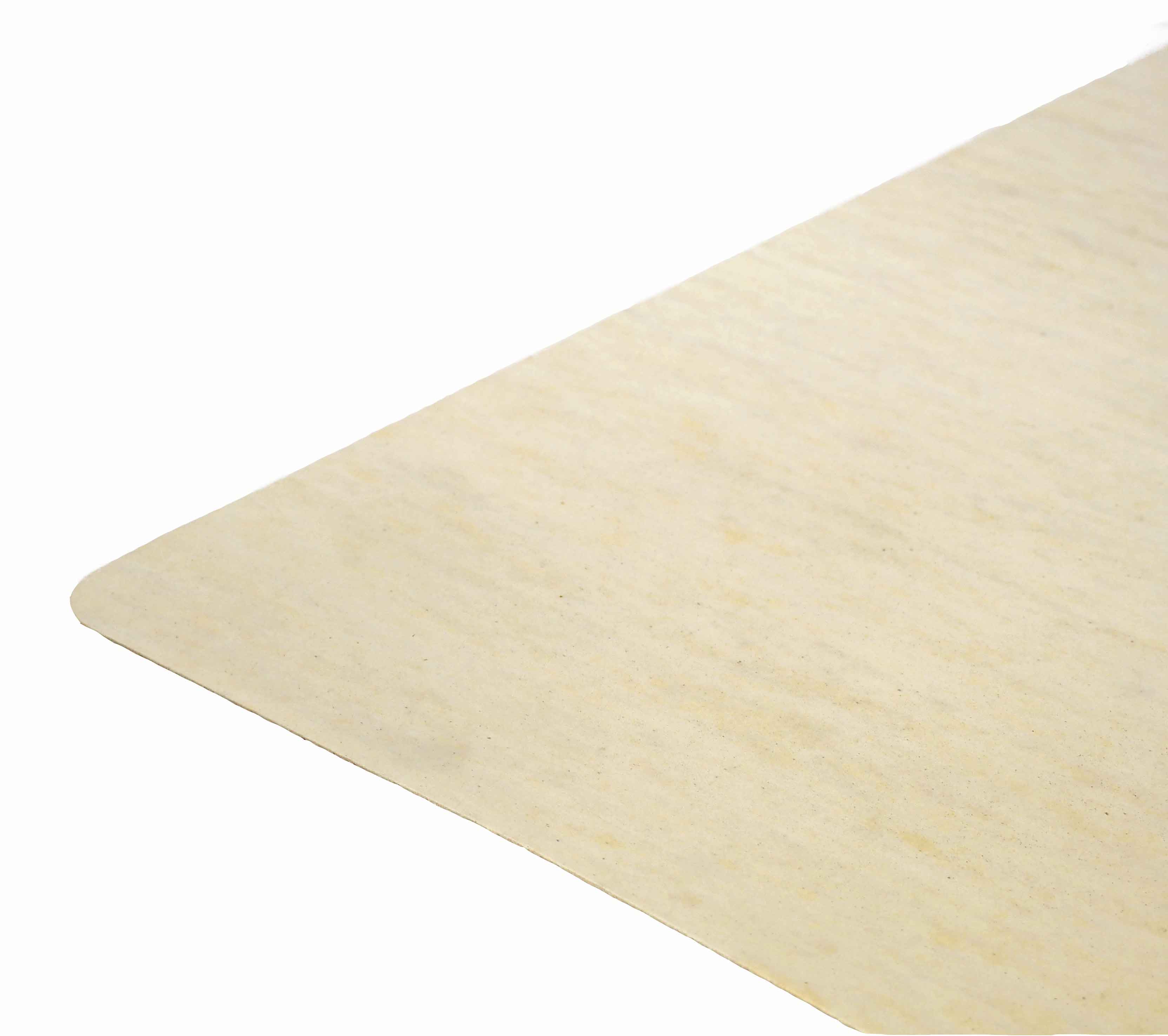

High Performance PTFE Sheet with Barium Sulphate Filler - J203 is a good general purpose grade for sealing applications over the whole PH Range. Suitable for Hydrofluoric Acid (although not Pure Liquid Hydrogen Fluoride.

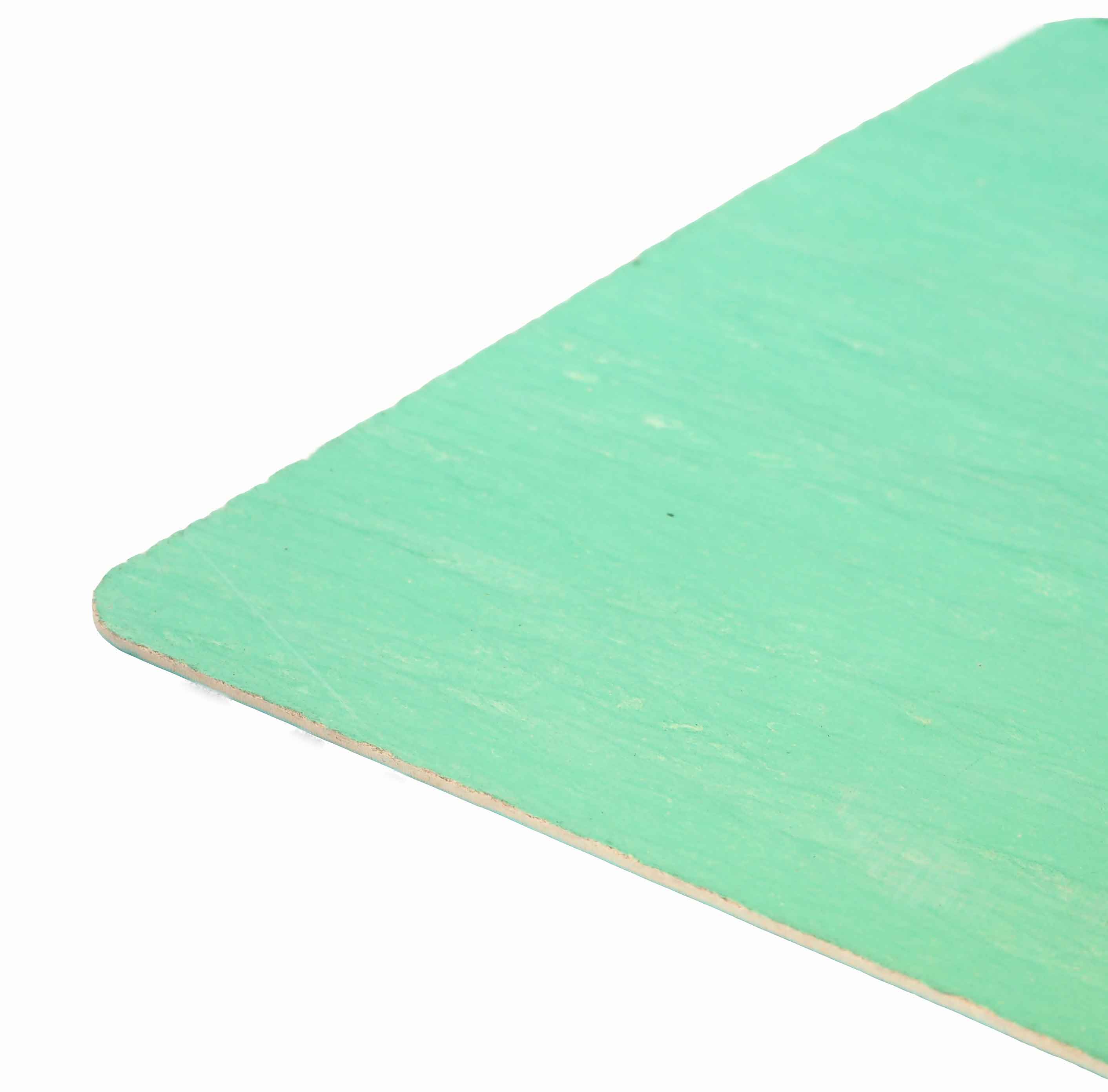

A Low Cost Jointing material for Low-Tech applications including hot and cold water, low pressure steam, fuels, gases, oils and some chemicals. This material is WRAS Approved.

Stainless Steel 316 Tanged Exfoliated Graphite Sheet, constructed with an adhesive free lamination process, that gives excellent mechanical strength to this robust gasket material. This is suitable for Extremely High Temperature applications up to 500°c combined with High Internal Pressures up to 120 Bar.

J501 - Mica based Sheet Jointing material is designed for use in applications that require constant exposure to extreme temperatures.

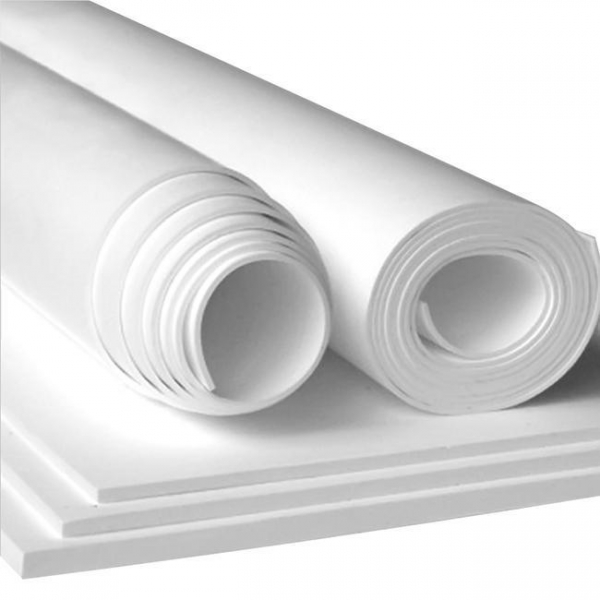

An advanced expanded PTFE (ePTFE) jointing material manufactured from 100% PTFE. Easy to handle cut and install with a low clamping force, suitable for a wide range of applications across many industries.

J302 Graphite Laminate Jointing Sheet - Exfoliated Graphite with a Stainless Steel Foil Insert. This Jointing Sheet has a wide temperature range, excellent chemical resistance and good stress retention properties making it an ideal choice for many demanding applications.
