Electrical Insulative Mats

Compare products
COMPARE PRODUCTS

An old favourite for Live Working Electrical Engineers, this 6mm Thick Material is often seen as a alternative to BS921. Although not officially tested to any specific standard the Thickness is still seen as re-assuring to some over newer and thinner specifications.


Electrical Insulation

+ VIEW ALL PROPERTIES

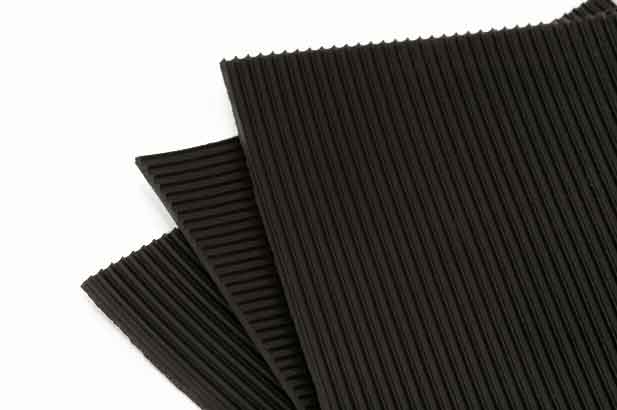

Electrical Insulation Matting conforming to BS921, remains the Matting of Choice for many Live Working Engineers, despite the introduction of BS EN 61111:2009. With a minimum Base Rubber Thickness of 6mm + Ribs the 8-10mm Thick Rubber offers the reassurance that some question with newer and thinner standards.


Electrical Insulation

+ VIEW ALL PROPERTIES

A European Manufactured BS EN 61111 Fully Compliant Electrical Insulation Matting. Unlike many commercially available materials Q610 has been independently tested and complies with all requirements of the standard including, Electrical Insulation, Slip Resistance, Puncture Resistance, Flame Retardant, Acid Resistance & Oil Resistance.


Abrasive Resistance
Acid Resistance
Electrical Insulation
Ozone Resitance
Self Extinguishing
Steam Resistant
Tear Resistant

+ VIEW ALL PROPERTIES

A European Manufactured BS EN 61111 Fully Compliant Electrical Insulation Matting. Unlike many commercially available materials Q611 has been independently tested and complies with all requirements of the standard including, Electrical Insulation, Slip Resistance, Puncture Resistance, Flame Retardant, Acid Resistance & Oil Resistance.


Abrasive Resistance
Acid Resistance
Electrical Insulation
Oil Resistance
Ozone Resitance
Tear Resistant
Weather Resistance

+ VIEW ALL PROPERTIES

A European Manufactured BS EN 61111 Fully Compliant Electrical Insulation Matting. Unlike many commercially available materials Q612 has been independently tested and complies with all requirements of the standard including, Electrical Insulation, Slip Resistance, Puncture Resistance, Flame Retardant, Acid Resistance & Oil Resistance.


Electrical Insulation

+ VIEW ALL PROPERTIES

A European Manufactured BS EN 61111 Fully Compliant Electrical Insulation Matting. Unlike many commercially available materials Q613 has been independently tested and complies with all requirements of the standard including, Electrical Insulation, Slip Resistance, Puncture Resistance, Flame Retardant, Acid Resistance & Oil Resistance.


Electrical Insulation
Flame Retardent
Oil Resistance
Tear Resistant

+ VIEW ALL PROPERTIES

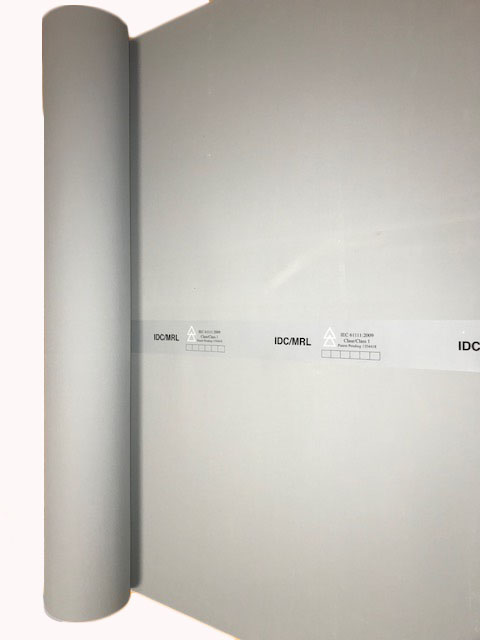

A European Manufactured BS EN 61111 Fully Compliant Electrical Insulation Matting. Unlike many commercially available materials Q614 has been independently tested and complies with all requirements of the standard including, Electrical Insulation, Slip Resistance, Puncture Resistance, Flame Retardant, Acid Resistance & Oil Resistance.


Abrasive Resistance
Acid Resistance
Electrical Insulation
Flame Retardent
Oil Resistance
Ozone Resitance
Self Extinguishing
Tear Resistant
Weather Resistance

+ VIEW ALL PROPERTIES

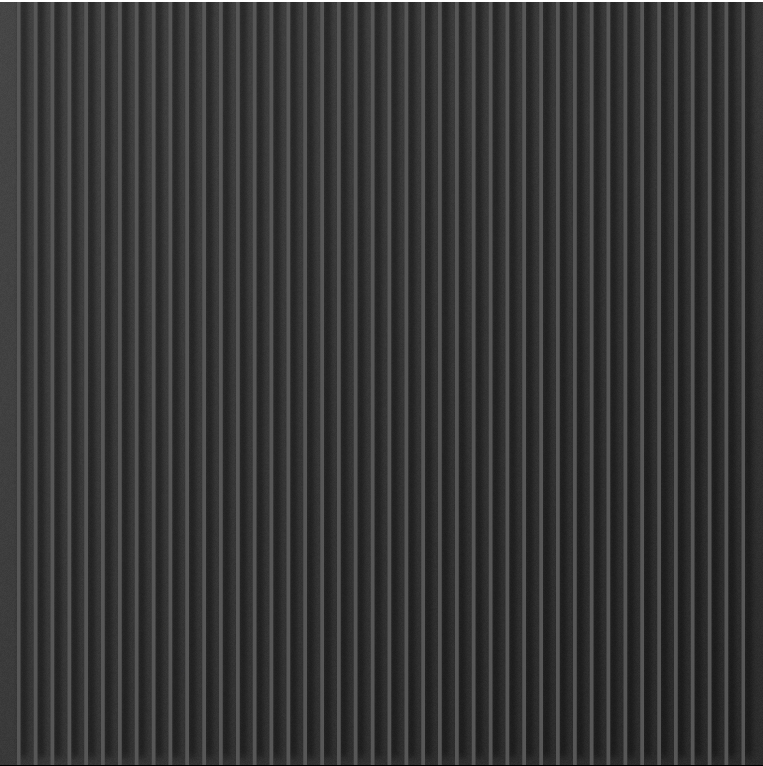

High Grade Electrical Insulation Matting that meets the technical requirements of ASTM D178 Type II Class 1.

Specifically designed to be Low Smoke for high safety interior applications around switchgear, it is also widely used on vehicles, commercial vessels and both surface and subsea naval ships where there is a need to protect personnel from risk of smoke inhalation.

Type II Class 1 material is breakdown tested to 20,000 volts, Proof Tested to 10,000 volts and approved for use in applications up to 7,500 Volts.

Materials are also available to meet Class 2 and Class 3 requirements.


Electrical Insulation
Flame Retardent

+ VIEW ALL PROPERTIES

MacLellan  0352 Grade is a PVC Electrical Inuslative Switchboard Matting for use in Live Working Applications and Tested to ASTM D178-01 Type II Class 2. Manufactured in PVC this Corrugated/Fluted Matting is 6mm Thick with a Recommended Maximum Usage of up to 17000 Volts.


Electrical Insulation

+ VIEW ALL PROPERTIES

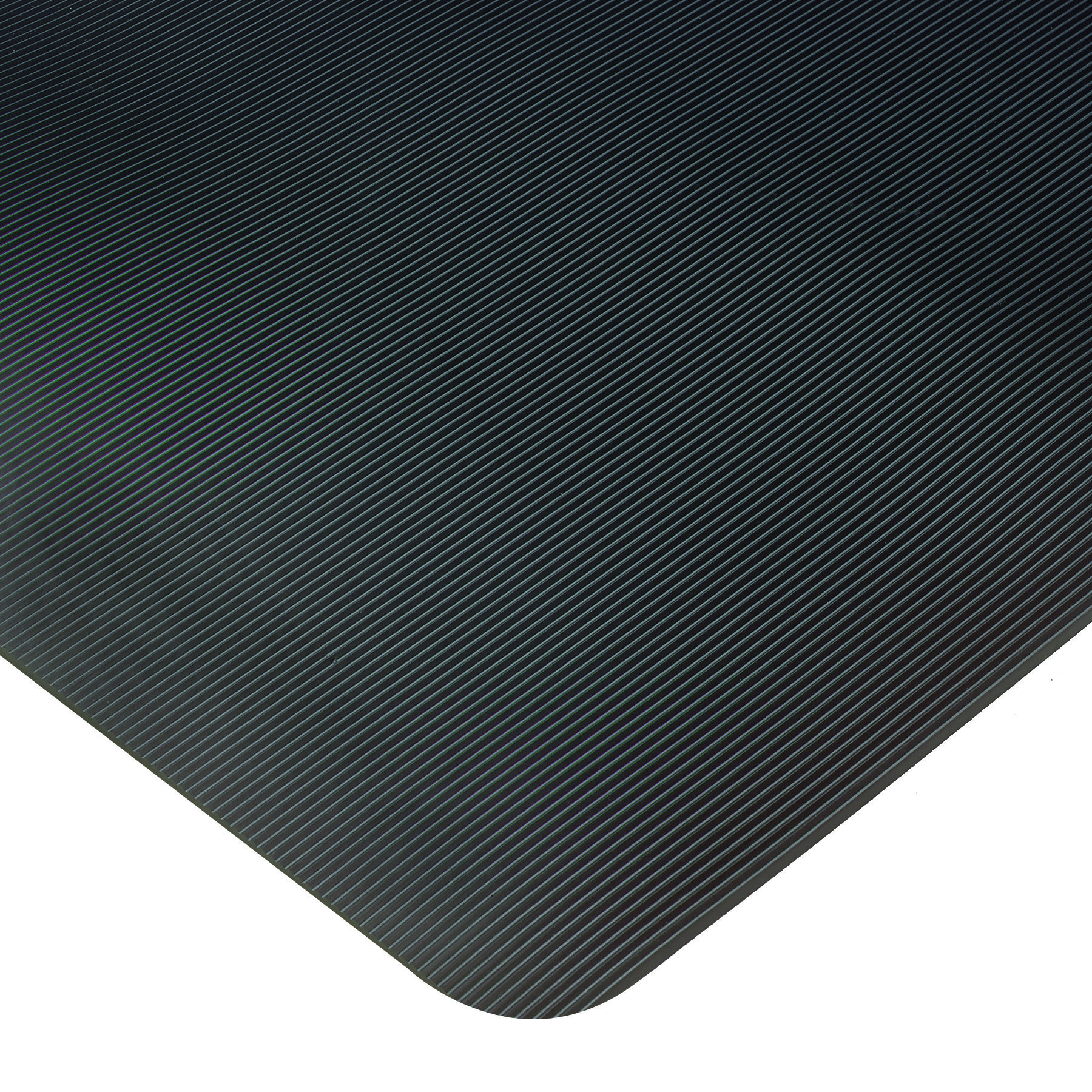

Double Duty Switchboard Matting has a PVC Surface with a Nitrile Infused Sponge base that provides protection from Electrical shocks and first class comfort and safety through the unique non-conductive sponge.  This Switchboard Matting is for use in Live Working Applications and Tested to ASTM D178-01 Type II Class 2. Tested to 30,000 Volts with a Recommended Maximum Usage of up to 17000 Volts.


Electrical Insulation
Flame Retardent
Tear Resistant

+ VIEW ALL PROPERTIES

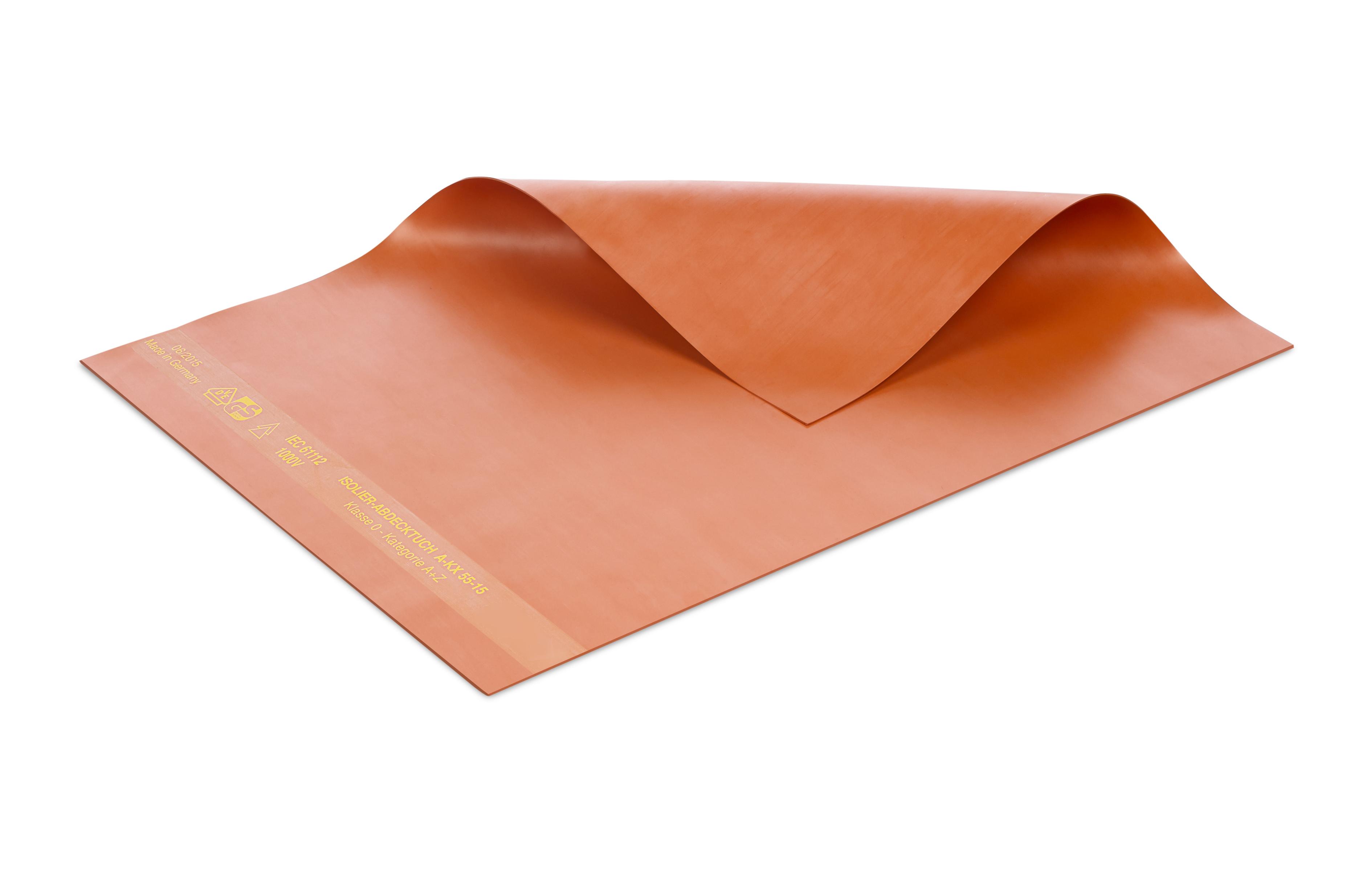

A high voltage Electrical Insulation Blanket and shrouding material suitable for live working up to 1000 volts.  Manufactured and certified to BS EN 61112 Class 0, which not only requires compliance to the electrical insulation testing but also flame resistance; wear, tear and oil resistance; puncture and low temperature resistance.

Manufactured in rolls at 1mtr and 1.2mtr wide x 1mm thick, and supplied in a salmon red colour.  Branded in accordance with the BS EN 61112 specification.


Electrical Insulation

+ VIEW ALL PROPERTIES

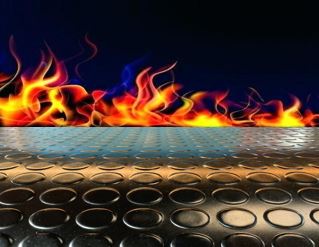

MacMat-Fire+ is an exceptional matting product meeting EN 13501 BfL S1 Fire resistant standard, with low, translucent, and non toxic smoke emissions.

In addition the material is Electrically Insulative, Oil Resistant, Thermal and Acoustic Insulative.

Manufactured with a circular stud pattern for comfortable, non slip and easy cleaning surface.


Electrical Insulation
Flame Retardent
Oil Resistance

+ VIEW ALL PROPERTIES
