Vibration & Noise Reduction

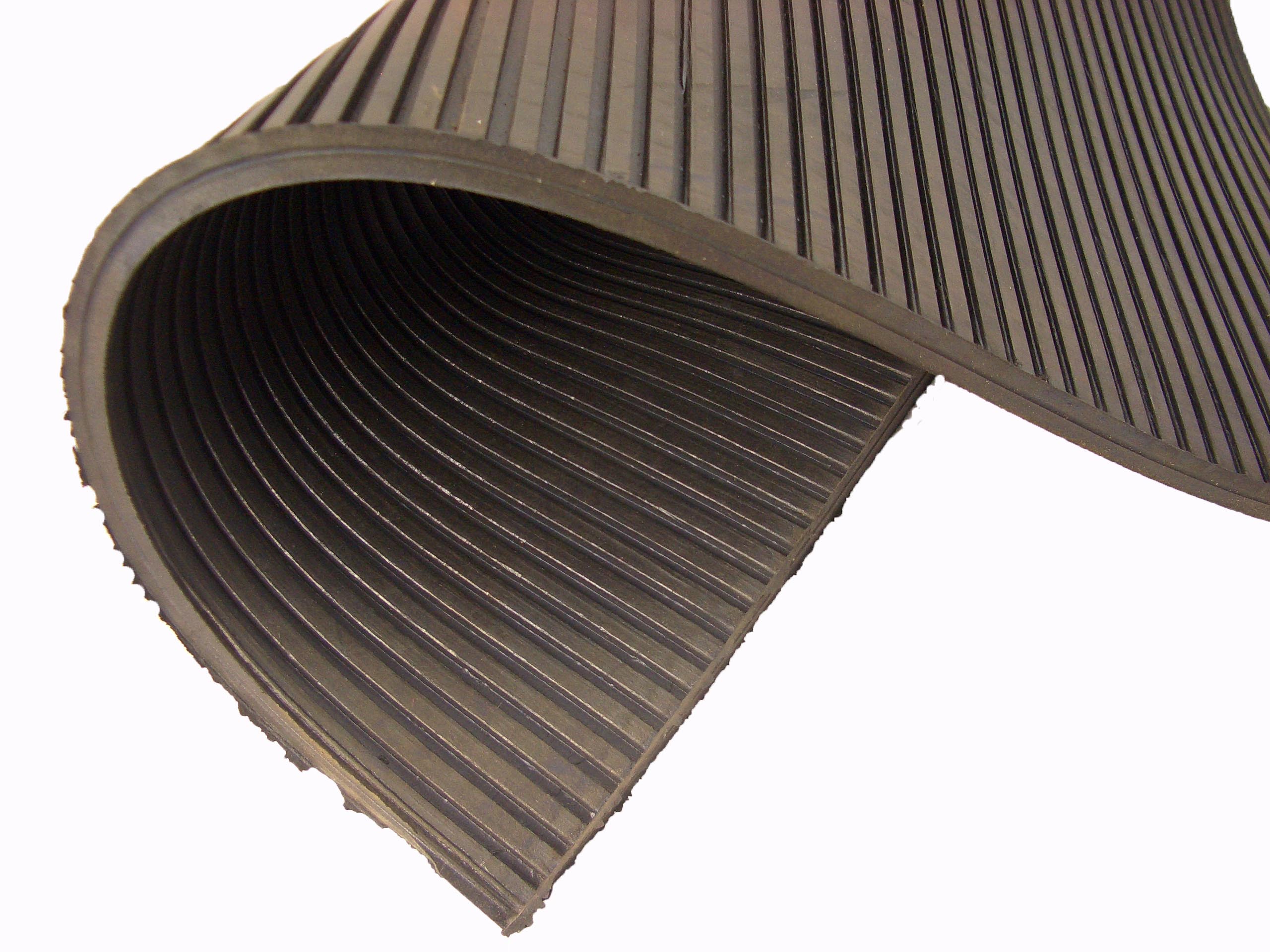

TRP0405 Anti-Vibration Mats are Natural Rubber bespoke compound pads designed to isolate vibration.  The 5mm Ribs run opposite to each other on both sides of the pad to ensure good grip and anti-vibration properties.

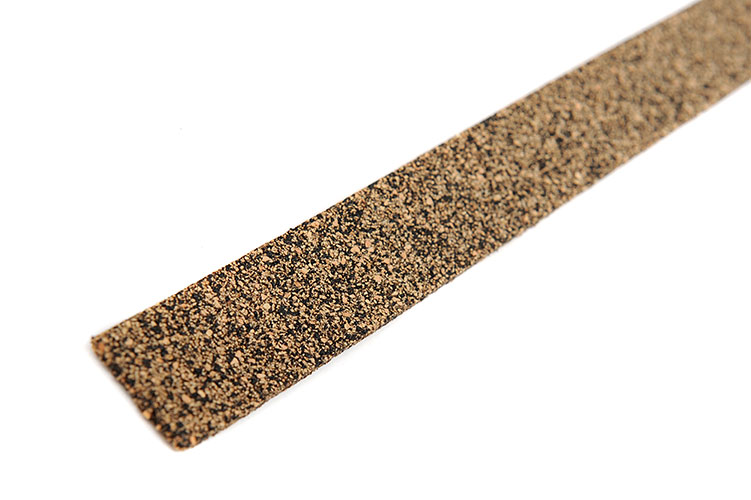

A high performance low compressible medium density nitrile bonded cork for noise and vibration control, with excellent oil and fuel resistance.

Suitable for a wide range of applications including Vibration control in technical equipment rooms, Vibration isolation for machinery including Pumps, Presses, Looms & Motors, Runways, rail & subway isolation pads. Building acoustic suspension elements & systems for walls, Ceilings, Pipings etc.

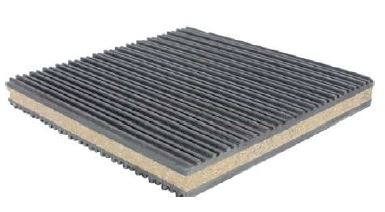

MacLellan Rubber Cork Rubber Mounting Pads are one of a
portfolio of solutions for noise and vibration reduction in
applications where bolting needs to be avoided. The Cork Rubber Pad is designed to eliminate structure born
vibration and noise, and has opposing ribbed pads on both
sides for isolation and positive grip.

Available in sheets 18” (457mm) square by 22mm thick, that
are easily cut to size on site.

With a working range of 15 to 75 psi, the maximum load per
standard sheet is 4,860 (2,200) – 24,300 ( 11,045) lbs (kg) .

Recommended for pumps, chillers, machine shop equipment,
compressors etc

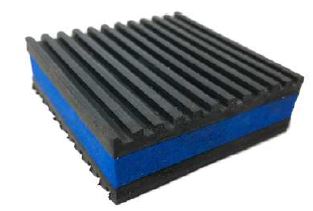

MacLellan Rubber Foam Rubber Mounting Pads are one of a
portfolio of solutions for noise and vibration reduction in
applications where bolting needs to be avoided.
The EVA Foam Rubber Pad is designed to eliminate
structure born vibration and noise, and has opposing ribbed
pads on both sides for isolation and positive grip.

Available in sheets 18” (457mm) square by 22mm thick,
which are easily cut to size on site.

With a working range of 4 to 20 psi, the maximum load per
standard sheet is 648 (295) – 6,480 (2,945) lbs (kg) .
Recommended for HVAC, motors, pumps, chillers, air
conditioning units, generators etc.

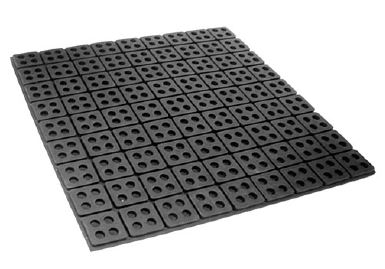

MacLellan Rubber general purpose Waffle Rubber Mounting
Pads are one of a portfolio of solutions for noise and vibration
reduction in applications where bolting needs to be avoided.
The Waffle Pad has a cup design on both sides that creates a
suction effect on the mating surfaces to provide positive grip,
isolating the equipment and stopping movement.
The 2” (50mm) squares are separated by a thin web of
material that is easily cut to size on site.

Available in sheets 18” (457mm) square and thicknesses of
8, 9.5, 12 and 19mm thick, and a range of hardnesses for
optimum isolation.
Maximum load capacity of 150 psi and 20% deflection at
Maximum Load.

Recommended for pumps, chillers, machine shop equipment,
and electrical transformers
